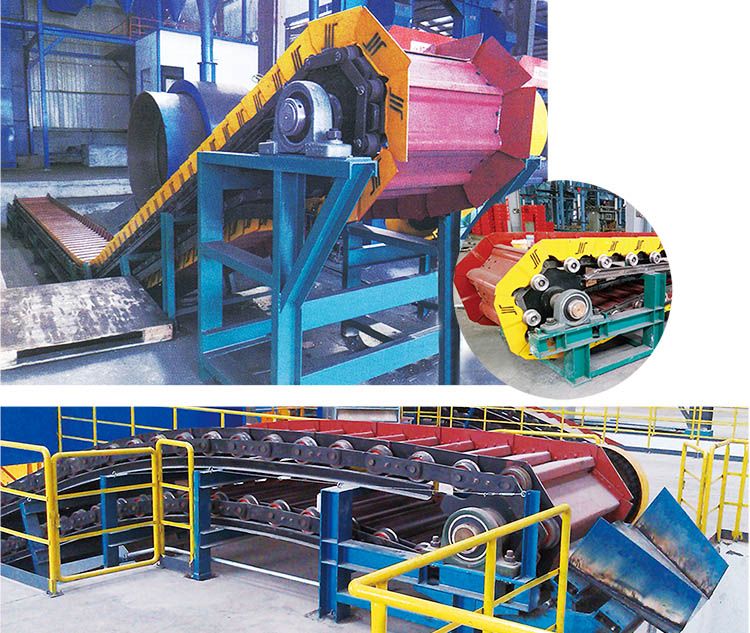

Widely used in machinery, foundry, metallurgy, chemistry, materials, power, mining, and other industry sections, Apron Conveyer of model BLT is kind of general purpose stationary mechanized transport equipment. Used in transportation of massive scattered materials or weight of single-piece especially adaptable to materials of large volume, sharpness, heavy-weight, high temperature and corrosion. Meanwhile, processes such as cooling, drying, heating, cleaning and classifying can be done during the transportation.
In comparison with model BLT, Apron Conveyer of model JYB is suitable for transporting heavy casting.
The Specification Of Apron Conveyer
| Model | Width Of Apron (mm) | Hight Of Trough (mm) | Allowable Load Of Traction (kg) | Max.Inclination Allowable β | Motion Speed (m/min) | Pitch Of Chain(mm) |
| BLT65 | 650 | 125 | 80 | ＜25° | 0.8-6 Stepless Speed Regulation | 250 |
| BLT80 | 800 | 160 | 120 | 320 | ||
| BLT100 | 1000 | 160 | 200 | 320 | ||
| BLT120 | 1200 | 200 | 250 | 320 | ||
| JYB80 | 800 | 135 | 400 | 320 | ||
| JYB100 | 1000 | 135 | 500 | 320 |
